About This

• [RGB LED Controller Kit]​: Compatible with 3-pin RGB LED strips, this PWM controller supports smooth color tuning and dimming. Key limitation: Not suitable for SPI-LED strips.

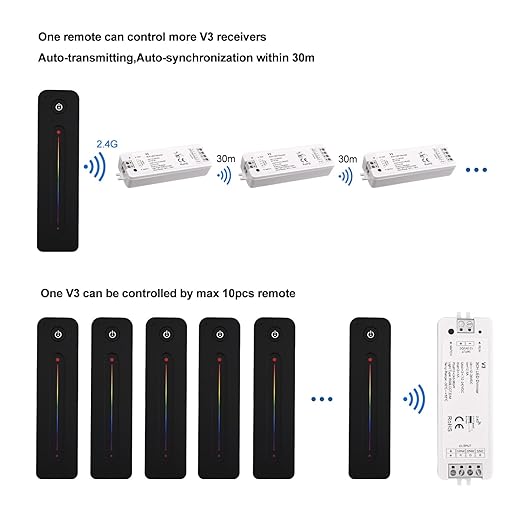

• [2.4GHz RF Remote]​: Featuring 2.4GHz wireless technology, this remote delivers wall-penetrating signal, 360° multi-directional operation (no direct alignment needed), and an extended control range of up to 98ft (30M).
• [Dimming & Color Change Function]: Touch the slider to change RGB colors or adjust white LED strip brightness. Additionally, long-press the ON/OFF button to adjust the brightness of R/G/B color channels separately.

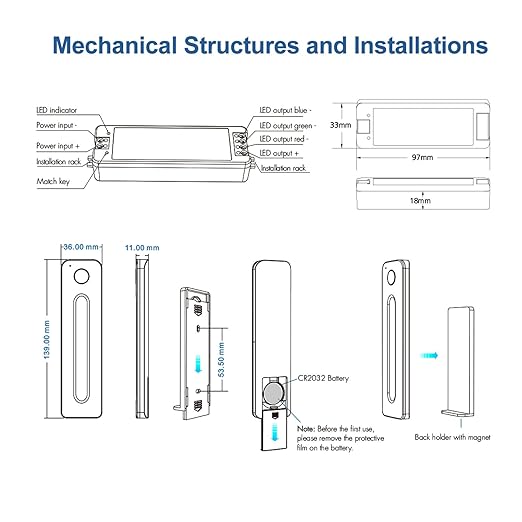

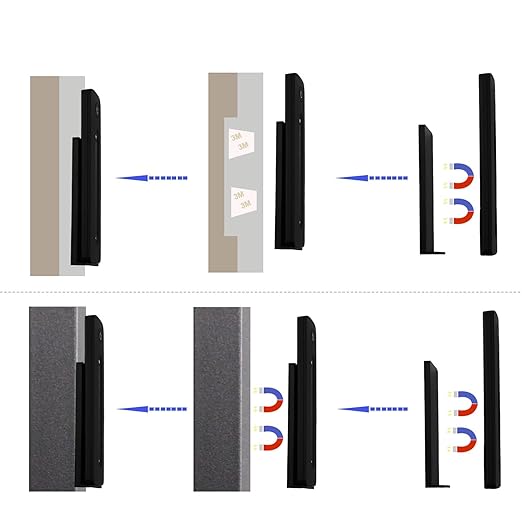

• [Wall-Mounted Magnetic Bracket]​: Included is a magnetic wall bracket that supports both adhesive and screw mounting. It provides secure storage for the remote, preventing loss and keeping it readily accessible.

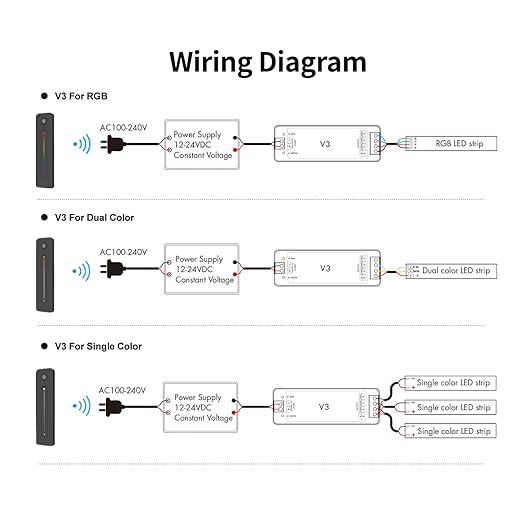

• [12–24V Low Voltage]​: A 12V or 24V power adapter is required to connect the controller. IMPORTANT NOTE: Do not connect directly to AC 110–240V power supply. Ensure the power adapter voltage matches the LED strip (use a 24V power supply for 24V LED strips).

Overview

• Operation Mode : Manual
• Current Rating : 3 Amps
• Operating Voltage : 3 Volts (DC)
• Contact Type : Normally Open
• Connector Type : Plug In
• Brand : TUNICHX
• Switch Type : Dimmer Switch, Slide, Touch Switch
• Terminal : No Terminals
• Material : Plastic
• Item dimensions L x W x H : 7.87 x 4.92 x 0.98 inches
