About This

• UL Listed class 2 standard 24v for 96W, 5 years warranty, input 120V, UL LISTED CONSTANT VOLTAGE driver+dimmer 2in1

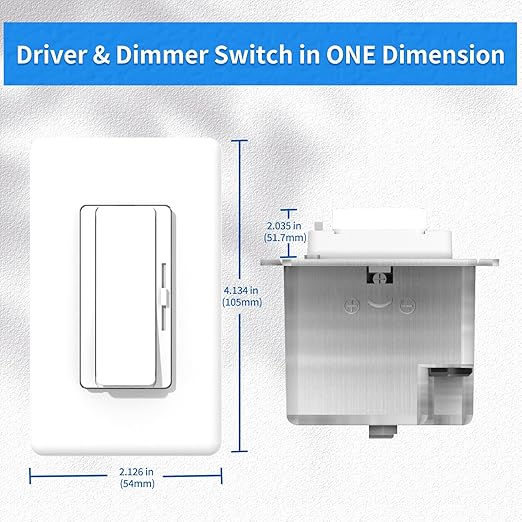

• Compact Size:105*54*51mm/4.13*2.13*2.0 inch,easy to install and hide.Ideal for various low voltage lighting projects such as LED strips, modules,cabinet and other applications
• Input Voltage:120V,built-in active PFC,typical Power Factor >0.99,THD<10%@120V Max.load, no minimum loading request,dimming range:0.3-100%,20KHZ PWM output with dimming curve is a gamma 2.2 curve Flicker-free
• Universal Compatibility: Converts 120V AC to 24V DC, driver and dimmer two all in one with slight voltage adjustment founction to solve the LEDs voltage drop problem
• Safety Protection: UL,cUL listed,Class 2 certificated, with protections of short circuit, overload, and over temperature, ensuring safety for both the power supply and your projects.
• 5 years warranty,suitable for use in dry and damp location

Overview

• Operation Mode : ON-OFF
• Current Rating : 4 Amps
• Operating Voltage : 120 Volts
• Contact Type : Normally Closed
• Connector Type : Screw
• Brand : LED ENERGY PLUS
• Switch Type : Dimmer and Driver Switch in One
• Terminal : Screw
• Material : Plastic
• Item dimensions L x W x H : 4.13 x 2.13 x 2 inches
