About This

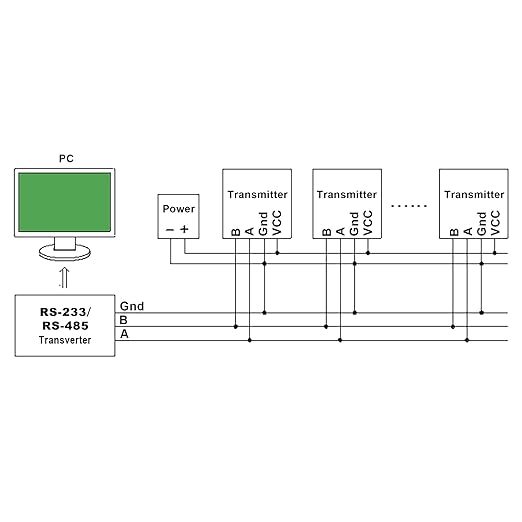

• Modbus-RTU Temp Sensor: Using RS485 communication interface output, compatible with standard Modbus-RTU protocol,keep transmission stability; Collection interval is 10s; The MAX transmission distance is 1200 meters,transmission rate is 4800 bps /9600 bps

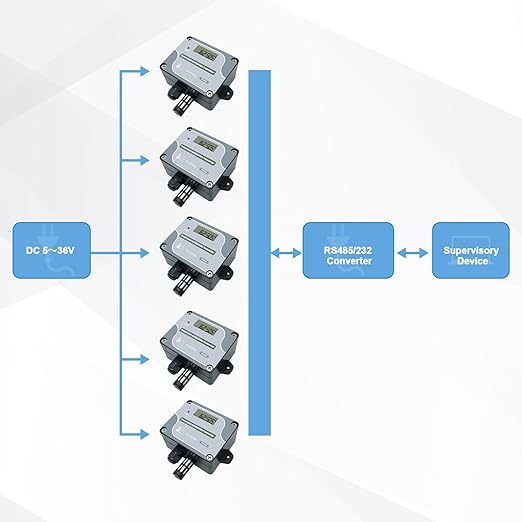

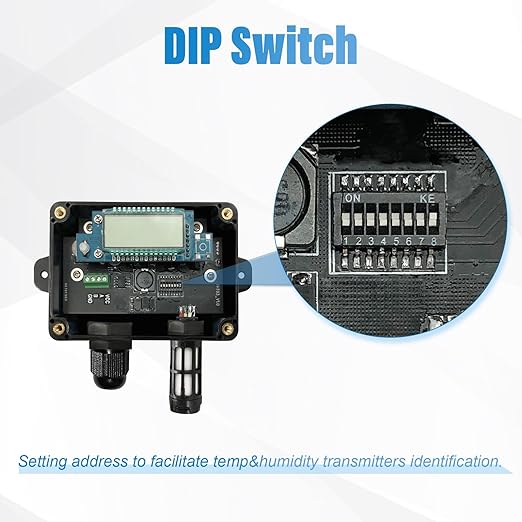

• DIP Switch Identify Sensors: Adopts DIP switch to set the address to facilitate sensor identification; With good long-term stability and anti-interference performance,it supports simultaneous monitoring of multiple temp and humidity sensors through computer

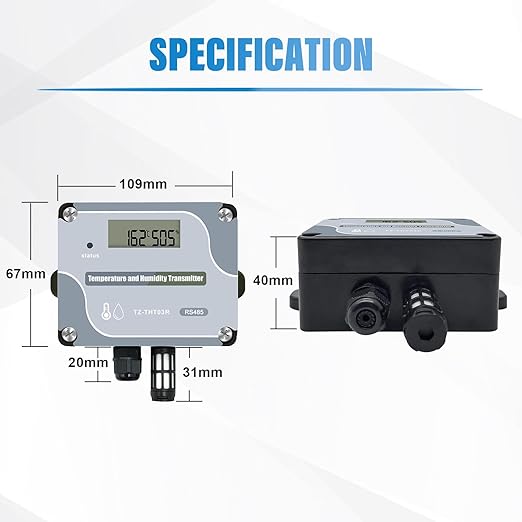

• RS485 Temperature Humidity Transmitter: The analog sensor adopts industrial-grade CMOS chip SHT30 sensor,improves its stability and reliability in high temp or humid environments; Dustproof,rainproof,snowproof,and breathable; Wall-mounted,easy to install

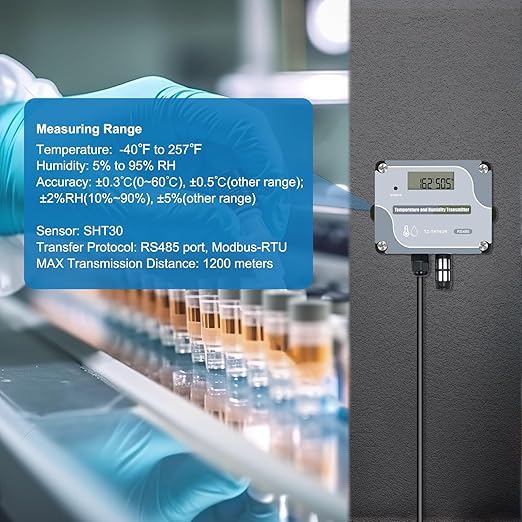

• Industrial Temperature Sensor Measurement Range: Temp measurement range is -40℃ to 125℃,accuracy is ±0.3℃(0~60℃); Humidity measuring range is 5% to 95%RH,accuracy is ±2%RH(10%~90%RH); Power Supply: DC 5～36V (voltage), 5mA (current); IP54 Waterproof

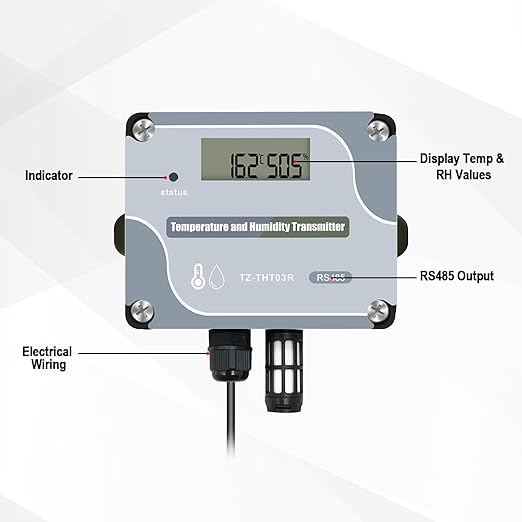

• LCD Display & Wide Application: Large LCD screen,displays real-time temp and humidity values,supports checking environmental data in time; Widely used to monitor temp and humidity in industrial,agricultural,HVAC,PLC and DCS Room,grow tent,greenhouse,etc

Overview

• Color : Gray
• Brand : Tzone
• Upper Temperature Rating : 125 Degrees Celsius
• Voltage : 36 Volts (DC)
• Temperature Accuracy : 0.3
