About This

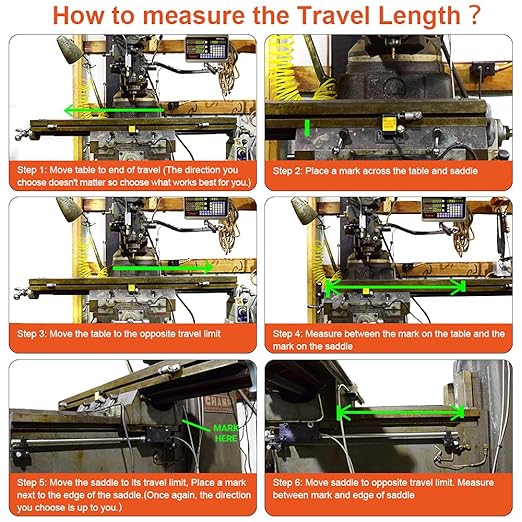

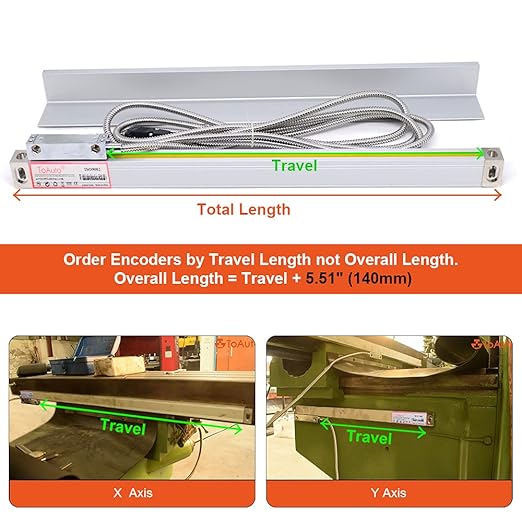

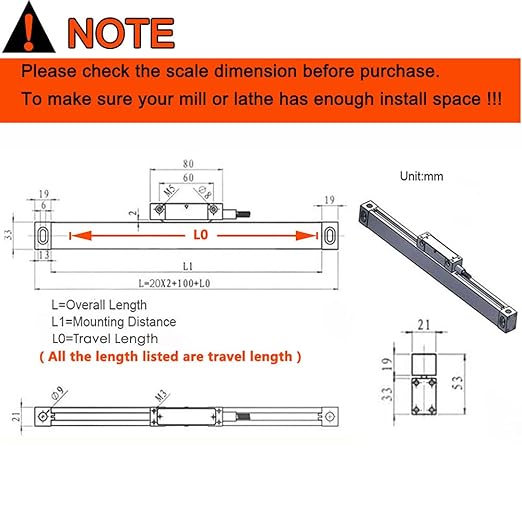

• 【TRAVEL LENGTH】The optical linear scale travel length : 100mm (4") . Total length=travel length+140mm(5.5”) . Travel length ONLY comes in 50mm increment ( 50/100/150....1000MM) Note : You will only receive 1pc 100mm Linear Scale when you select this option.
• 【HIGH PERFORMANCE】Measurement accuracy of the linear sensor can be accurate to 5 micron(0.005mm / 0.0002") to reduce working errors.

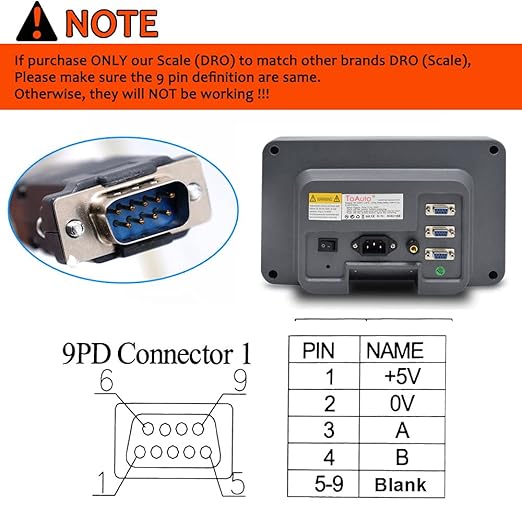

• 【INTERFACE&SIGNAL CABLE】TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection.

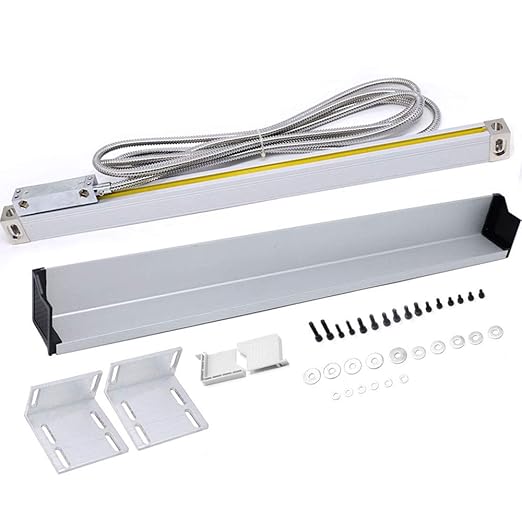

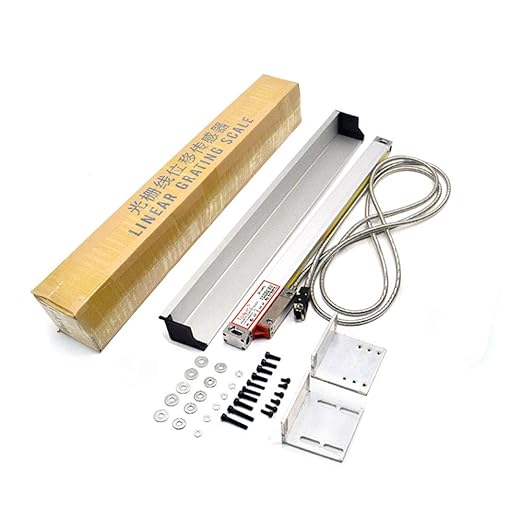

• 【FULL MOUNTING KIT】The package include 1pc 400mm linear scale , 1pc L type mounting plate, 1pc scale cover and some screws, easy installation.
• All Products will be provided for lifetime technical support

Overview

• Brand : TOAUTO
• Material : Alloy Steel, Metal
• Measurement Accuracy : 5UM
• UPC : 191673166114
• Manufacturer : TOAUTO
